R134A R410A recharge equipment CM20A gas charging vacuum system Refrigerant filling machine

Place of Origin : Jiangsu, China

Brand Name : CM

Packaging Details : wooden/pallet

Supply Ability : 100 Set/Sets per Month

Price : $22,000.00/sets >=1 sets

Model Number : CM20A

Certification : CE ATEX

MOQ : 1 Unit

Condition : New

Applicable Industries : Construction works , Energy & Mining, Other

Weight (KG) : 700

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Pump

Type : Refrigerant charging machine

Warranty : 1 Year

Name : refrigerant filling machine

Model No : CM20A-3S

Function : Vacuum and charging refrigerant to 100L or smaller cylinders

Refrigerant : R32/R134A/R407C/R410A,ect.

Air supply : 0.6-0.8Mpa

charging speed : 4kg/min each stage

stage number : 3

Vacuum speed : 4L/S

Certificate : ISO9001,CE.ATEX

Voltage : 220-240/50-60Hz

Port : Shanghai

Contact Now

R134A R410A recharge equipment CM20A gas charging vacuum system Refrigerant filling machine

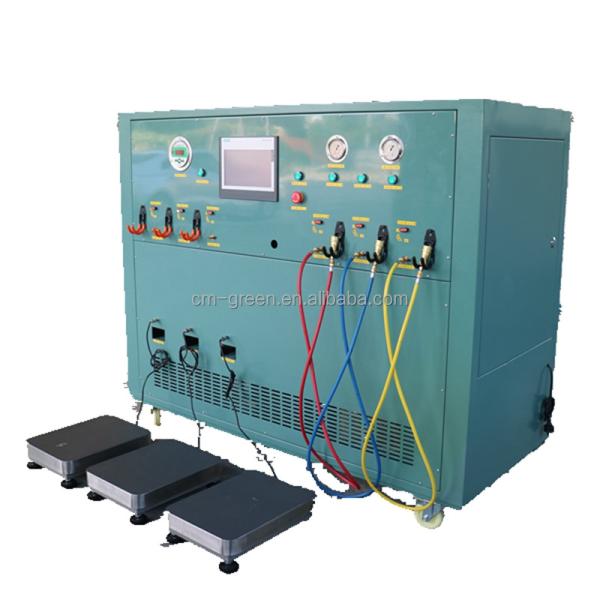

CM20A refrigerant filling machine is for the application that Transfer refrigerant

from ISOTANK or 1000-100L tank to 12L-100L tank. It integrates functions of vacuum, recharge.Three stations can work simultaneously,so sub-package efficiency is very high.The accuracy reach to is 99.5%.

R134A R410A recharge equipment CM20A gas charging vacuum system Refrigerant filling machine

Refrigerant charging machine Feature

1) Integrate functions of vacuum, filling, and pump back - high efficiency and no refrigerant loss;

2) Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/

R410A etc;

3) Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder;

4) Refrigerant filling completely, and auto-stop when the pressure of supply tank is up to -0.04MPA;

5) Three working-station design, high filling efficiency;

6) Overall protection system, safe credible;

7) Filling accuracy reach to 99.5%;

8) Accept processing customized.

R134A R410A recharge equipment CM20A gas charging vacuum system Refrigerant filling machine

Refrigerant charging machine Technology Data

Model	Booster oil-free pump	Vacuum pump	Refrigerant	Filling speed	Cylinder
CM20A	1.5HP	2L/S*3pcs	R410A/R22/ R134A etc	≤5kg/min	≤100L

R134A R410A recharge equipment CM20A gas charging vacuum system Refrigerant filling machine

R134A R410A recharge equipment CM20A gas charging vacuum system Refrigerant filling machine Images
