Factory Direct Sale High Safety Oil Less Refrigeration Service Tool CM5000 Refrigerant Recovery Recycle Reclaim Machine

Place of Origin : Jiangsu, China

Brand Name : CM

Packaging Details : wooden case
pallet

Supply Ability : 500 Unit/Units per Month

Price : $8,000.00/units >=1 units

Condition : New

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory

Weight (KG) : 80

Showroom Location : None

Video outgoing-inspection : Not Available

Machinery Test Report : Not Available

Warranty of core components : 1 Year

Core Components : Engine, Motor, Pump

Type : refrigerant recovery machine

Warranty : 1 Year

Color : yellow or green

Voltage : 230V/50~60Hz

Compressor : Oil-free

Refrigerant : R134A/R407C/R22/R410A

Model No : CM2000A

vapor recovery rate : ≤21.8kg/h

liquid recovery rate : ≤156kg/h

pull/push recovery rate : ≤500kg/h

Marketing Type : New Product 2020

Port : Shanghai

Contact Now

Product Description

CM5000 commercial series refrigerant recovery machine is universal for CFC/HCFC/HFC refrigerants with ultra fast recovery rate,it equipped with a superior condenser and powerful compressor which all you recovery more refrigerant with pressure protection cut-out function.You will not be disappointed by its performance.

Application

On site maintenance of chiller including other HVAC equipment

Ton tank residual gas recovery

Features

1.Oil-free compressor – compatible with CFC/HCFC/HFC refrigerants

2.Ultra fast recovery rate for both liquid and vapor refrigerants

3.Multi-function valve design- simple operation in vapor and push/pull recovery

4.Perfect protection cut-out function – safe credibility;

5.Optional air cooled and water cooled version

6.High vacuum degree -0.04Mpa allow recovery more refrigerant for avoid refrigerant lose

7.Equipped with self-purge function for preventing cross contamination

8.Equipped with 80% float switch for avoid cylinder overfilling

9.Specially designed for chiller and central air condition

10.Continuously running for 24 hours duty cycle

Model	CM5000
Input Power	1.5 KW
Compressor	2 HP Oil-less Type
Vapor Recovery Rate	≤ 60 kg/h
Liquid Recovery Rate	≤ 240 kg/h
Push / Pull Recovery Speed	≤1300 kg/h
Using Temperature Range	-5 C to 40 C
Suction Pressure	-0.04 to +0.6Mpa
Discharge Pressure	0 to 26Bar
Low-pressure Automatic Stop	-0.04Bar (Factory setting)
Over-voltage Protection	26Bar Automatic Reset
Applicable Refrigerant	R134a / R22 / R410A
Refrigerant Connecting Pipe	1/2 Inch
Applicable Unit	Medium&Small Central Air Conditioning System

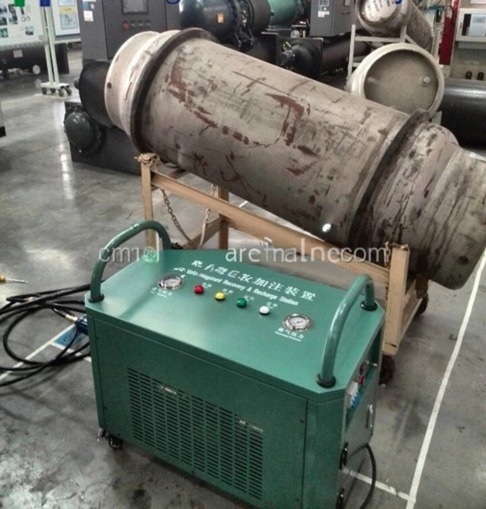

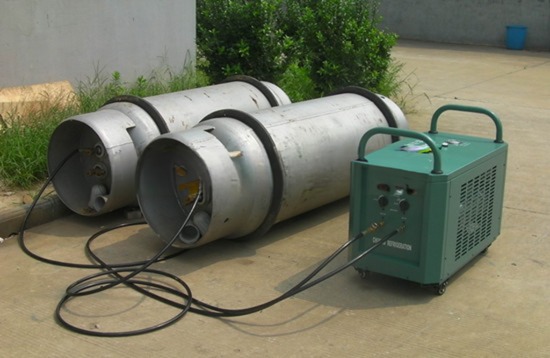

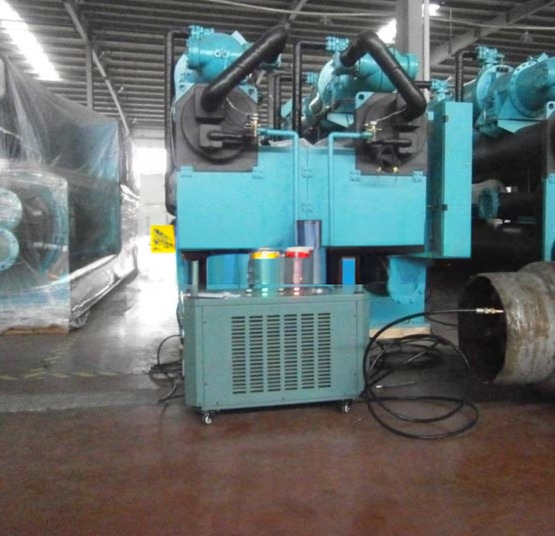

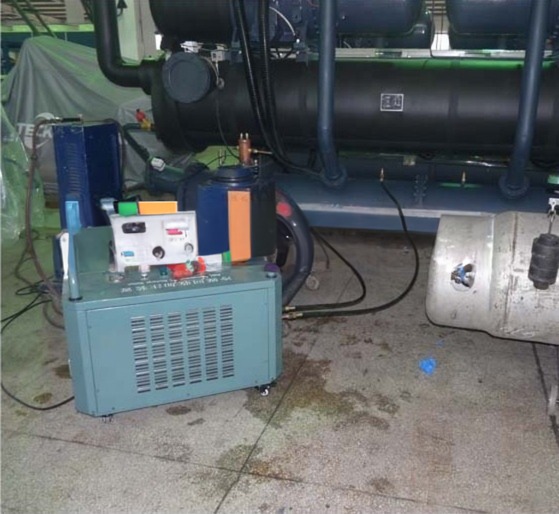

Customer Project
