3 Workstations Refrigerant Recovery Filling System Oil Less Recovery Ac Gas Charging Machine Split Charging Station

Place of Origin : Jiangsu, China

Brand Name : CM

Certification : CE

Packaging Details : wooden case, pallet
refrigerant split charging machine refrigerant sub-package filling system

Supply Ability : 50 Unit/Units per Month

Price : $21,600.00/units 1-1 units

Condition : New

Applicable Industries : Machinery Repair Shops, Manufacturing Plant

Weight (KG) : 430

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Warranty of core components : 1 Year

Core Components : Motor, Pump

Type : COMPRESSOR

Warranty : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Application : for refilling refrigerants to cylinders from ISO tank

Compressor : Oil-free

Refrigerant : R134A/R22/R407C/R410A

Product name : CM20A Refrigerant Split Filling System Charging Machine

filling accuracy : 0.5%

filling rate : 6kg/min

scale measurement range : 40kg/100kg/150kg/200kg(optional)

vacuum pump : 4L/s (3 units)

Contact Now

Product Description

CM20/CM20A Multiple-Stage Refrigerant Split Sub-Packaging System Refrigerant Charging Filling Machine

CM20A Multiple-Stations refrigerant filling system is specially designed for filling refrigerant from ISO tank or storage tank to
10L-100L cylinder,it integrated filling and vacuum functions with Siemens PLC programmer control system, standard three stations can work at the same time to improve production capacity,multiple stations can be customized.

CM20/CM20A Multiple-Stage Refrigerant Sub-Packaging System Main features
1. Integrate functions of vacuum, filling, and pump-back- high efficiency and no refrigerant loss;
2. Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/R410A etc;
3. Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder;
4. Refrigerant filling completely, and auto-stop when the pressure of supply tank is up to -0.04MPA;
5. Three working-station design, high filling efficiency;
6. Overall protection system, safe credible;
7. Filling accuracy is 0.5%;
8. Can make according to customers' requirements.

CM20/CM20A Multiple-Stage Refrigerant Sub-Package System Specification
Model	Booster Oil-free Compressor	Vacuum Pump	Filling Rate	Application Tank
CM20	1.5 HP	2 L/s * 3 units	≤ 3kg/min	≤ 20L
CM20A	1.5 HP	4 L/s * 3 units	≤ 3kg/min	≤ 60L

3 Workstations Refrigerant Recovery Filling System Oil Less Recovery Ac Gas Charging Machine Split Charging Station

Advantage and Features

1. Integrates vacuum and split filling functions, smart PLC control.

2. Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/R410A etc,

3. Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder; 4. Transfer speed is fast, 4kg/min for each filling station. 5. Filling accuracy is 0. 5%;

6. Without any loss of refrigerant during transfer process.

7. Daily transfer capacity is 100-600pcs of 13.6L(30lbs) cylinders.

8. Low investment, fast return, compact design is convenient for moving and using.

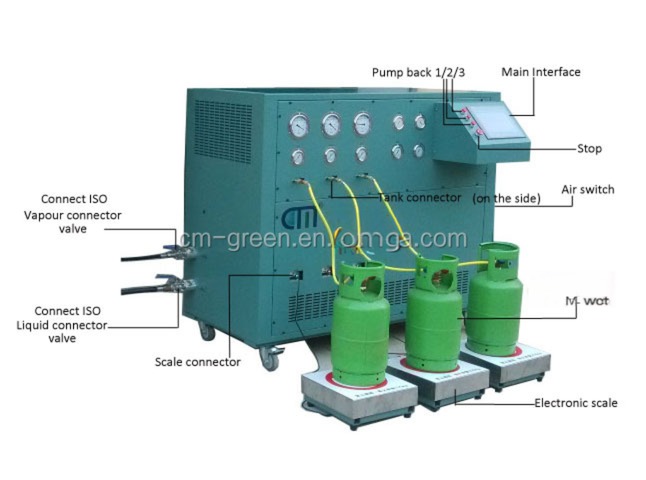

3 Workstations Refrigerant Recovery Filling System Oil Less Recovery Ac Gas Charging Machine Split Charging Station Images
